S06012505518
S06012505518
1/2.5″, 1/2.8″, 6mm S-mount lens, 3 megapixel large aperutre F1.8 for CCTV.

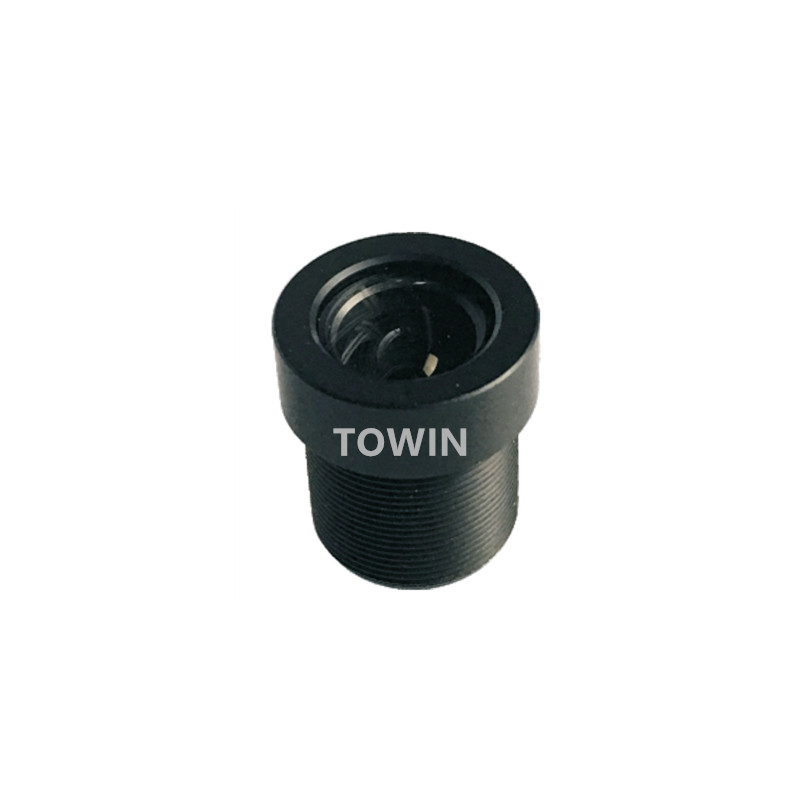

S06012505518 is a 6mm HD S-Mount lens. It is designed for 1/2.5″ IMX317, and 1/2.8” IMX322, IMX291. And it is a fixed focal board lens with large aperture F1.8 for low light CCTV.
| IMAGE FORMAT | 1/2.5″ |
| FOCAL LENGTH | 6mm |
| F.O.V.(IMX322) | 62° |
| 55° | |
| 33° | |
| RESOLUTION | 3 MP |
| TV DISTORTION | <-14% |
| APERTURE | F1.8 |
| MOUNT | M12x0.5 |
| IRIS | Fixed |
| M.O.D. | 0.1m |
| T.T.L. | 23.2mm |
| STRUCTURE | 5G |

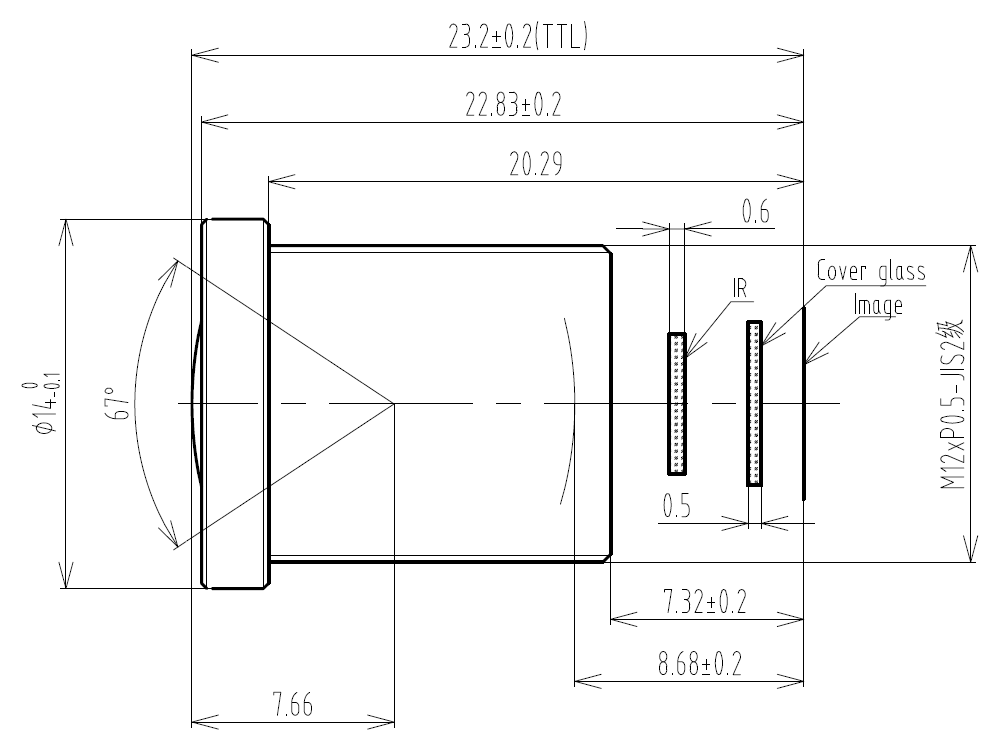

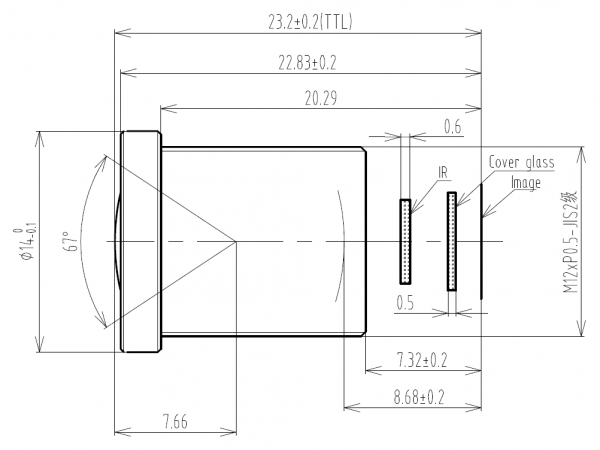

S06012505518 6mm HD S-Mount lens-1
