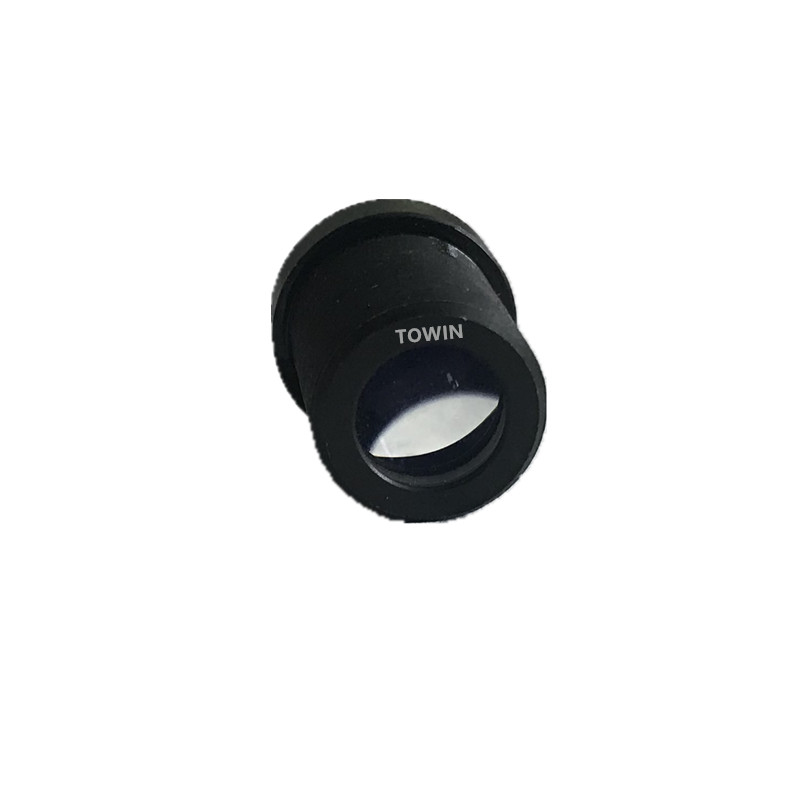

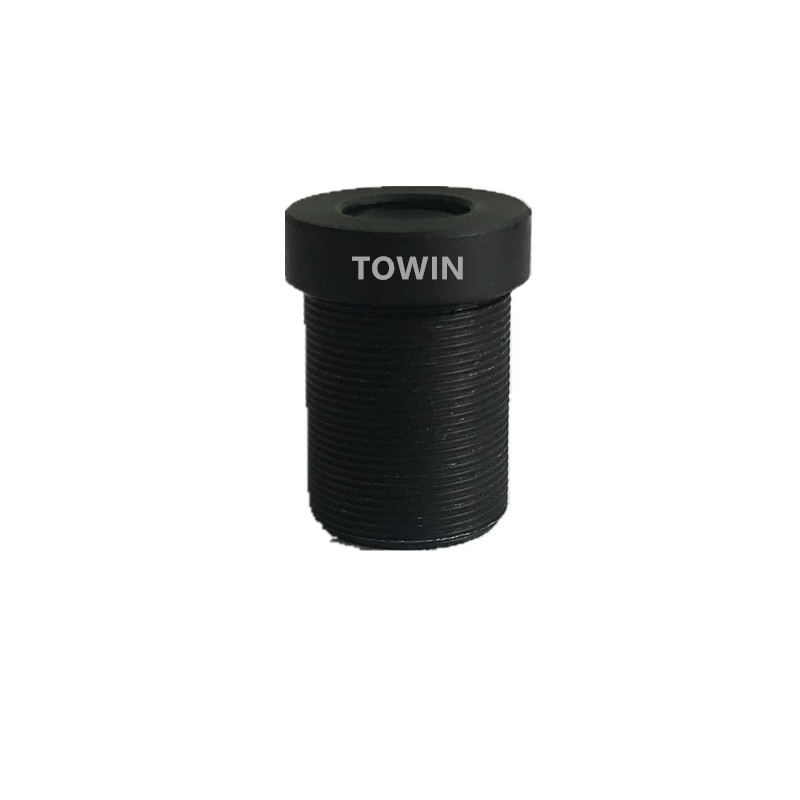

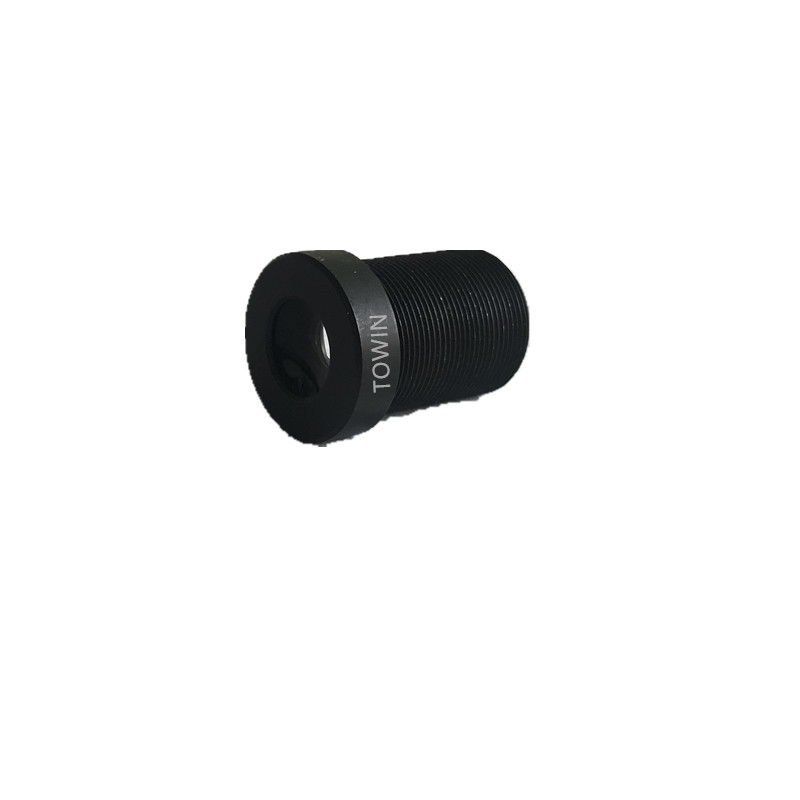

CCL127060MP

low light lens F1.4 CCTV 6mm 1/2.7″ 2 MP board lens

Description
Additional information

CCL127060MP is a low light sensitive lens. The aperture is F1.4 large enough for CCTV cameras. It is for 1/2.7” sensor OV2710.

IMAGE FORMAT	1/2.7″
FOCAL LENGTH	6mm
F.O.V.	75°(D)
	63°(H)
	44°(V)
RESOLUTION	2 MP
APERTURE	F1.4
MOUNT	M12x0.5
IRIS	Fixed
M.O.D.	0.2m
DIMENSION	Φ14×19.5mm
LENS COMPOMEMT	5G

Download Specs Sheet

Online contact

FNo.	1.4
Max Dist.	6.1%, 10%
FEATURE	Low Light Sensitive
E.F.L.	6mm
H. F.O.V.	63°
SENSOR	1/2.7"
IRIS	Fixed
MOUNT	M12x0.5
RESOLUTION	2MP
T.T.L.(mm)	24.89
