S01614013018F

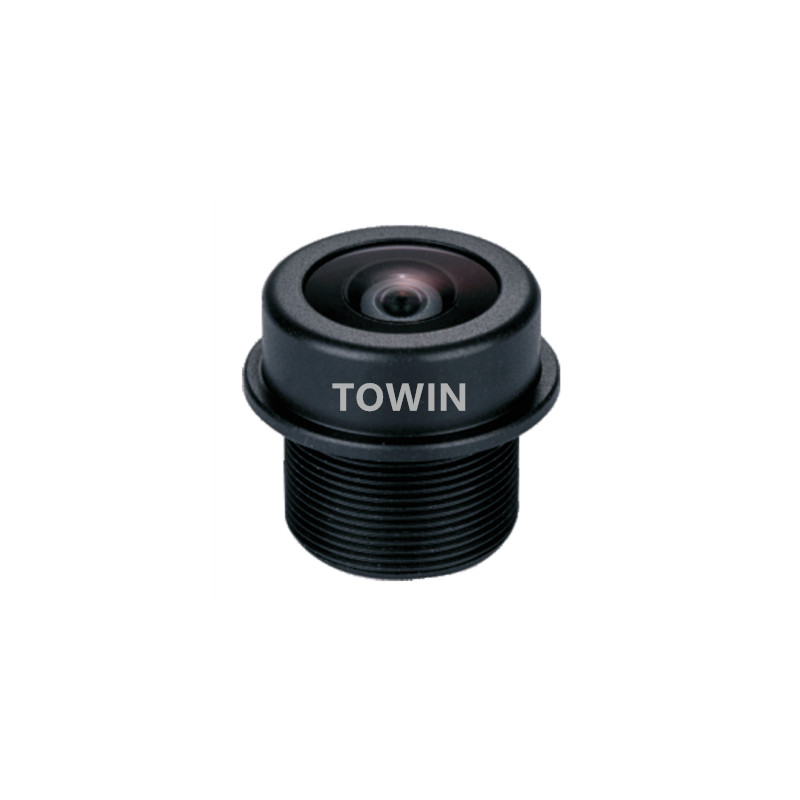

S01614013018F is a 1.6mm wide angle s mount lens. It is designed for 1/4″ sensors, such as AR0140AT, OV9712. It has large aperture F1.8 for low light and very short T.T.L. 16mm.
| IMAGE FORMAT | 1/4″ |
| FOCAL LENGTH | 1.6mm |
| F.O.V. | 160° |
| 130° | |
| 96° | |
| RESOLUTION | 1.3 MP |
| DISTORTION | <76% |
| APERTURE | F1.8 |
| MOUNT | M12x0.5 |
| IRIS | Fixed |
| M.O.D. | 0.1m |
| T.T.L. | 16mm |
| STRUCTURE | 6G+IRCF |

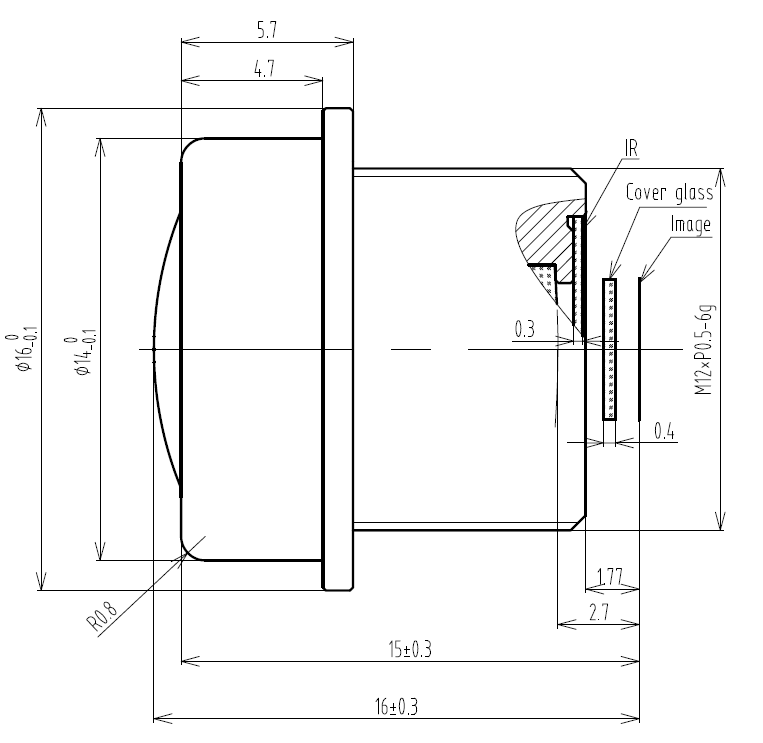

S01614013018F 1.6mm wide angle S-Mount lens-1
