S03312710520
S03312710520

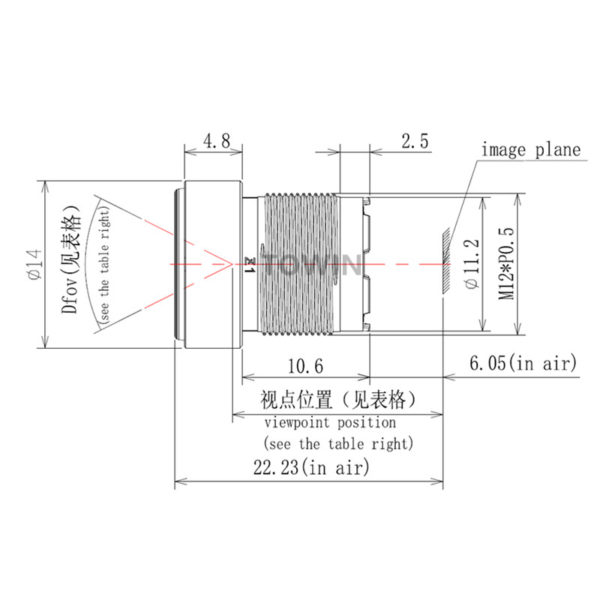

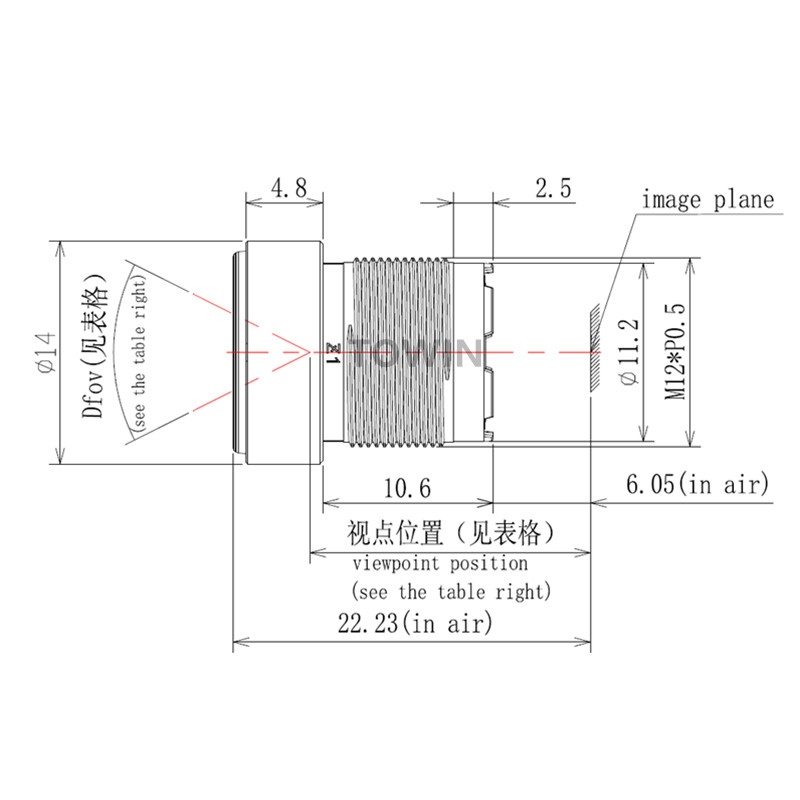

1/2.7″, 1/2.8”, 1/2.9″, 2 Megapixel, 3.3mm F2.0, wide angle M12 S-mount CCTV board lens.
S03312710520 is a 3.3mm wide angle M12 S-mount CCTV board lens. It is for 1/2.7″ OV2710, OV2735, AR0230, 1/2.8” IMX322, IMX290, 1/2.9″ GC2053, AR0330, OV4689. And it is a 2 Megapixel HD lens with large aperture F2.0 for IP security surveillance camera.
| IMAGE FORMAT | 1/2.7″ |
| FOCAL LENGTH | 3.3mm |
| F.O.V. (OV2710) | 125° |
| 105° | |
| 56° | |
| RESOLUTION | 2 MP |
| DISTORTION | 48% |
| APERTURE | F2.0 |
| MOUNT | M12x0.5 |
| IRIS | Fixed |
| M.O.D. | 0.1m |
| T.T.L. | 22.23mm |
| STRUCTURE | 1G4P |
S03312710520 3.3mm wide angle M12 S-mount CCTV board lens
