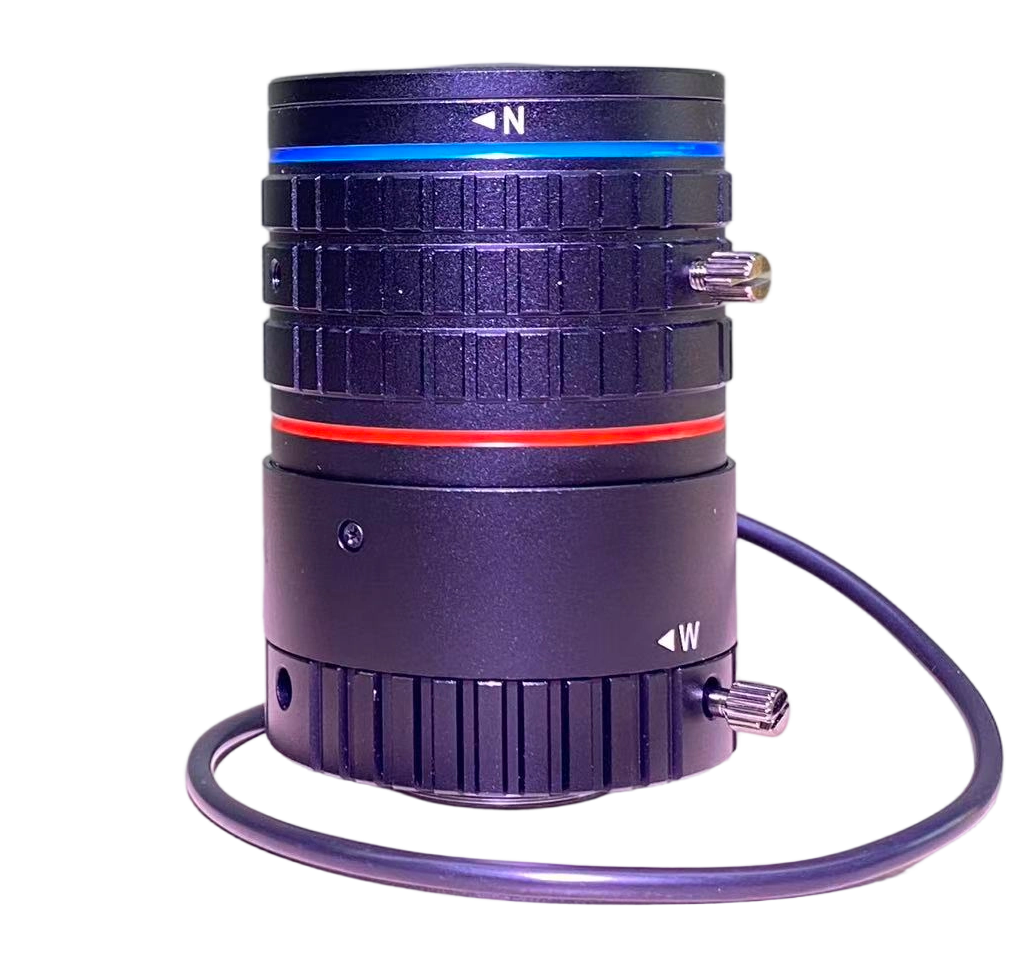

The CS-Mount Lens with a flange focal distance of 12.526 mm is designed to attach CS mount CCD/CMOS camera. Our high resolution megapixel CS-mount lenses have Fixed Focal and Vari-Focal length with Manual Iris, DC Auto Iris, P-Iris types, which are widely used in CCTV camera,Network camera, IP camera for video surveillance applications. Using Muti-Coating technology, the lens with IR corrected is perfect for Day/Night security camera.
Filters Sort results
Reset Apply
Lens P/N | E.F.L. | Sensor | H. F.O.V. | MP | Max Dist. | FNo. | Iris | T.T.L. |
|---|---|---|---|---|---|---|---|---|
3.2mm | 1/1.7" | 131° | 12MP | 64% | 2.0 | Fixed | ||
5mm | 1/1.7" | 87° | 12MP | 43% | 2.0 | Fixed | ||
8mm | 1/1.7" | 56° | 12MP | 16% | 1.8 | Fixed | ||
3.2mm | 1/1.8" | 129° | 12MP | 64% | 2.0 | Fixed | ||
4.3mm | 1/1.8" | 97° | 6MP | 2.3 | Fixed | |||
12-50mm | 1/1.8" | 33°~8° | 6MP | 18% | 1.5 | P-Iris | 92.3 | |
15-45mm | 1/2" | 15°~5° | 1.3MP | 1.0 | DC Auto | |||
3.2mm | 1/2.3" | 114° | 12MP | 2.0 | Fixed | |||
6-60mm | 1/2.5" | 43°-5.5° | 3MP | 1.4 | DC Auto | |||
8mm | 1/2.5" | 35° | 3MP | 1.2 | Fixed | |||
2.8mm | 1/2.7" | 116° | 2MP | 1.2 | Fixed | |||
5-50mm | 1/2.7" | 50.9°~6.2° | 4MP | 5% | 1.4 | DC Auto | 85.4 | |
5-50mm | 1/2.7" | 50.9°~6.2° | 3MP | 5% | 1.4 | Manual | 85.4 | |
2.8-12mm | 1/2.7" | 109°~31° | 3MP | 1.4 | DC Auto | |||
2.8-12mm | 1/2.7" | 113°~28° | 3MP | 89% | 1.4 | DC Auto | 73.5 | |
2.1mm | 1/3" | 125° | 3MP | 1.6 | Fixed | |||
2.8mm | 1/3" | 81° | 2MP | 1.8 | Manual | |||
3.5-8mm | 1/3" | 70°~ 30° | 1MP | 1.4 | DC Auto | |||
4.0mm | 1/3" | 65° | 2MP | 1.8 | DC Auto | 100 | ||
4.0mm | 1/3" | 70° | 2MP | 1.8 | Manual | 90.5 |
