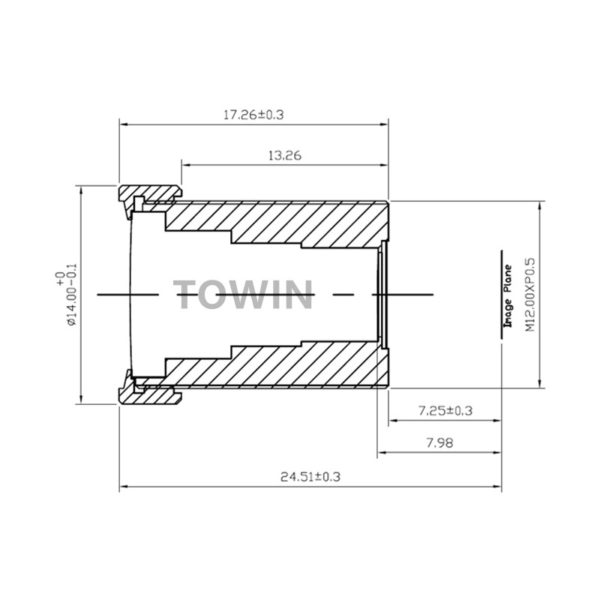

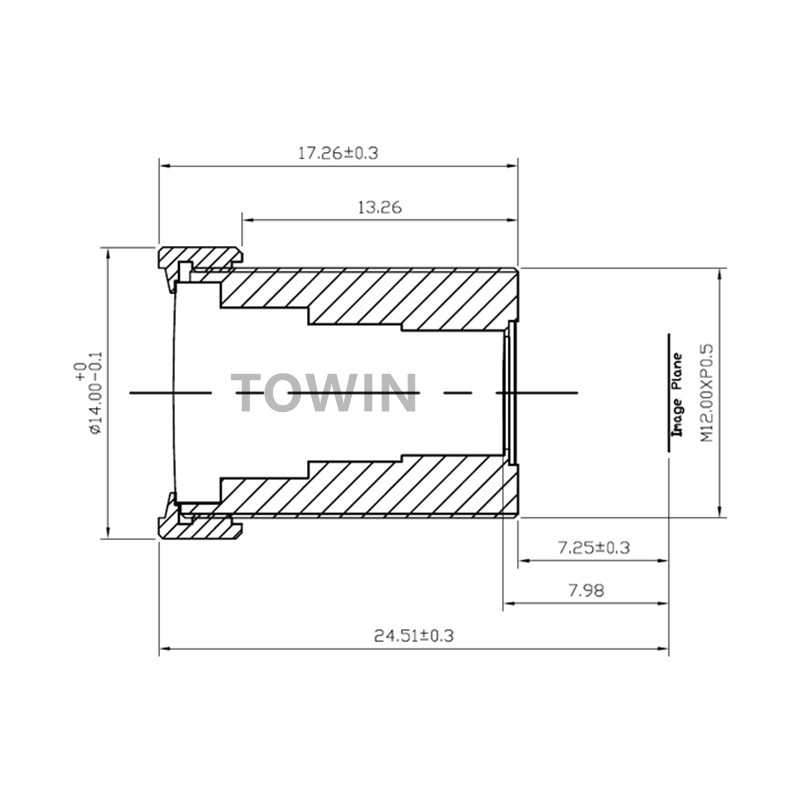

CCL125042MP是一个4.2毫米的M12 S-mount闭路电视监控镜头。它适用于1/2.5英寸500万像素传感器Aptina MT9P031，IMX317和F2.0用于低光IP摄像机，红外校正用于昼夜安全视频监控。
| IMAGE FORMAT | 1/2.5″ |
| FOCAL LENGTH | 4.2mm |
| F.O.V. | 95°(D) |
| 77°(H) | |
| 56°(V) | |
| RESOLUTION | 5Megapixel |
| APERTURE | F2.0 |
| MOUNT | M12X0.5 |
| IRIS | Fixed |
| FOCUS | Manual |
| ZOOM | Fixed |
| B.F.L. | 7.98mm |
| M.O.D. | 0.1m |
| IR | Corrected |
CCL125042MP 4.2mm M12 S-mount CCTV lens
