CCL12902918MP
CCL1292918MP是一款2.9mm广角M12 板机镜头，适用于像OmniVision OV2718、OV4689这样的1/2.9英寸传感器。它的大光圈F1.8适用于低照微光暗光黑光应用。它是一个高清400万像素镜头。
| IMAGE FORMAT | 1/2.9″ |
| FOCAL LENGTH | 2.9mm |
| F.O.V.(sensor OV4689) | 138°(D) |
| 116°(H) | |
| 64°(V) | |
| RESOLUTION | 4 Megapixel |
| OPTICAL DISTORTION | <-57% |
| APERTURE | F1.8 |
| MOUNT | M12X0.5 |
| IRIS | Fixed |
| FOCUS | Manual |
| ZOOM | Fixed |
| B.F.L. | 4.9mm |
| M.O.D. | 0.2m |
| CONSTRUCTION | 6G |

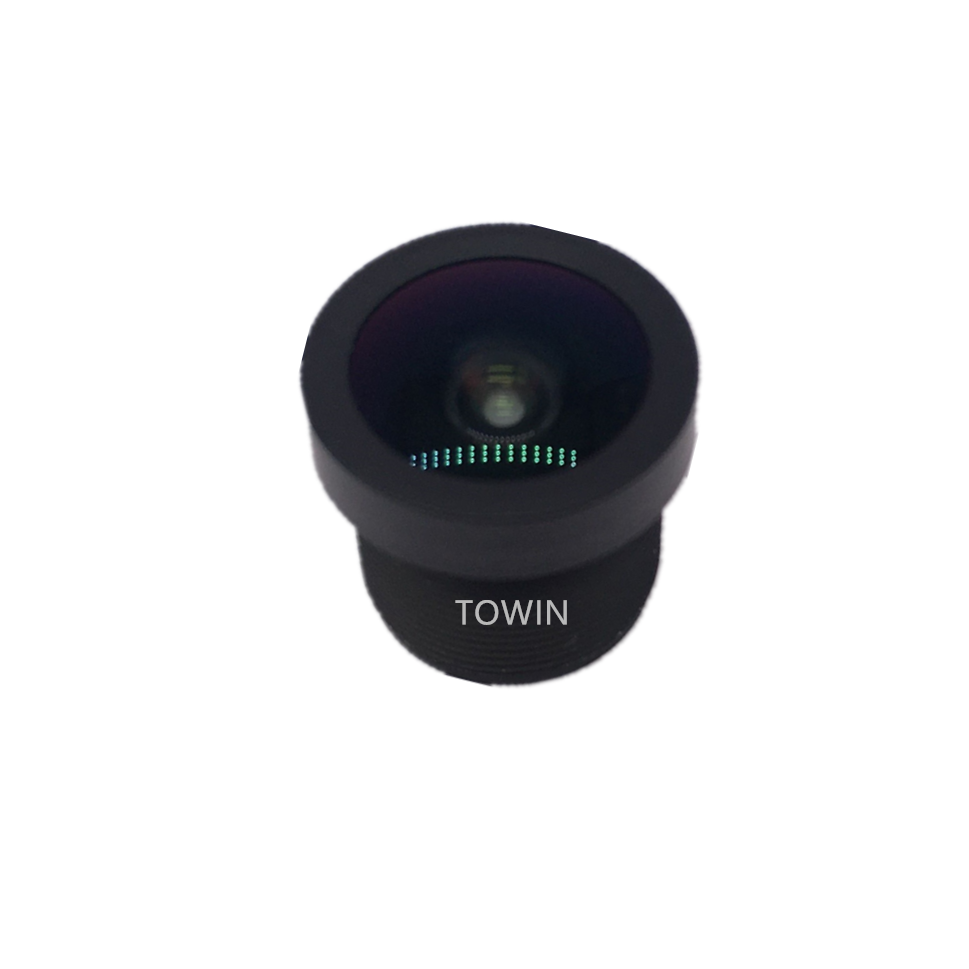

CCL12902918MP 2.9mm wide angle M12 S-mount lens
