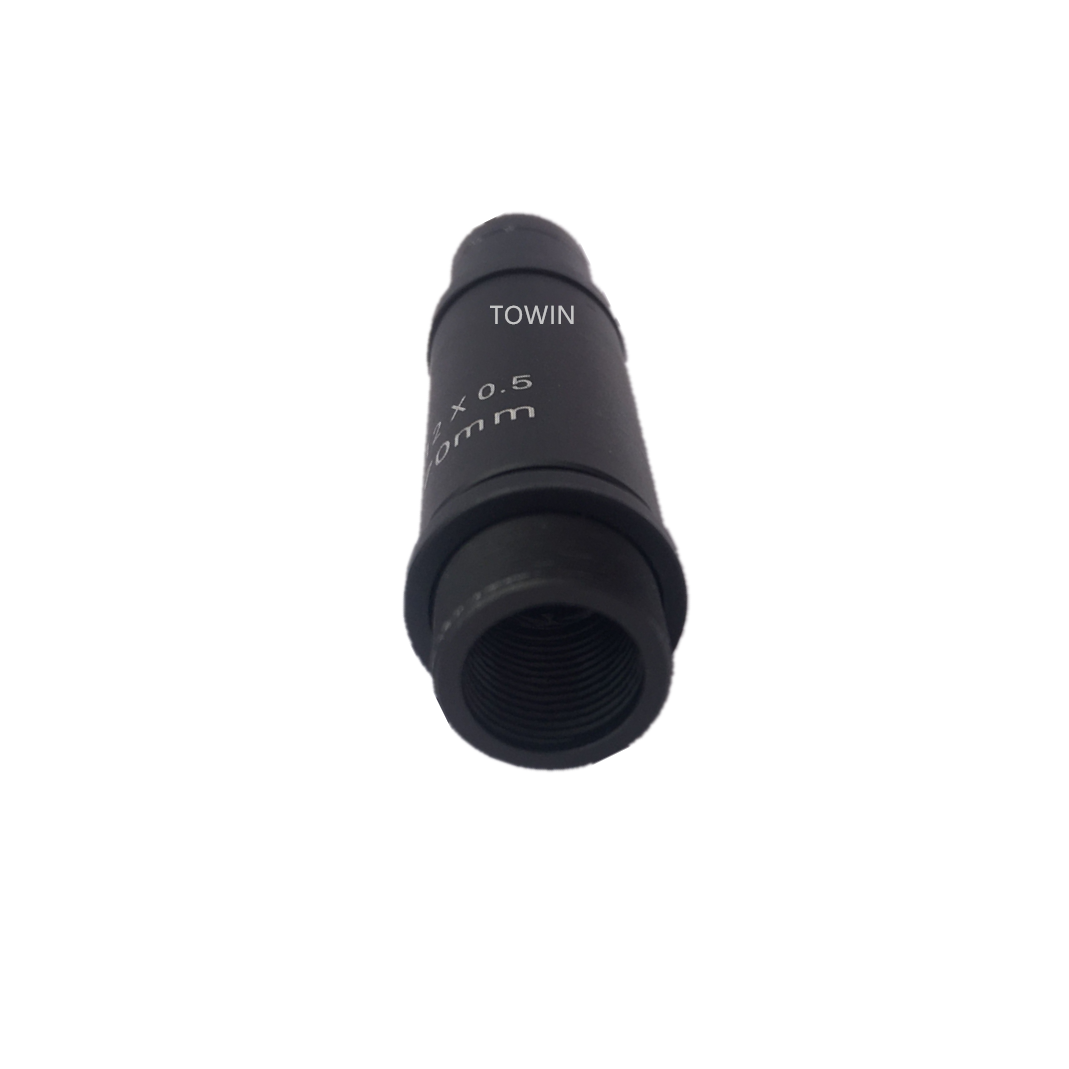

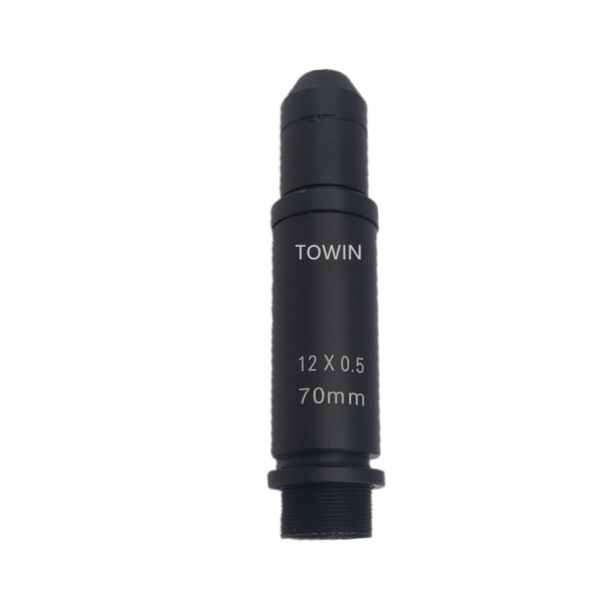

CCL1370PMPR

1/3“”，高达1/1.8“”，70mm 针孔 M12 S 接口监控镜头，隐蔽监视，高温冶金。

描述
其他信息

CCL1370PMPR是一个70mm针孔M12 S接口闭路电视监控镜头。它是长焦距高清镜头，适用于1/3″，高达1/1.8″的传感器。广泛应用于视频隐蔽监控、高温冶金等领域。

IMAGE FORMAT	1/3″
FOCAL LENGTH	70mm
H.F.O.V.	4°
RESOLUTION	2 MP
APERTURE	F12
MOUNT	M12X0.5
IRIS	Fixed
FOCUS	Manual
ZOOM	Fixed
M.O.D.	0.5m

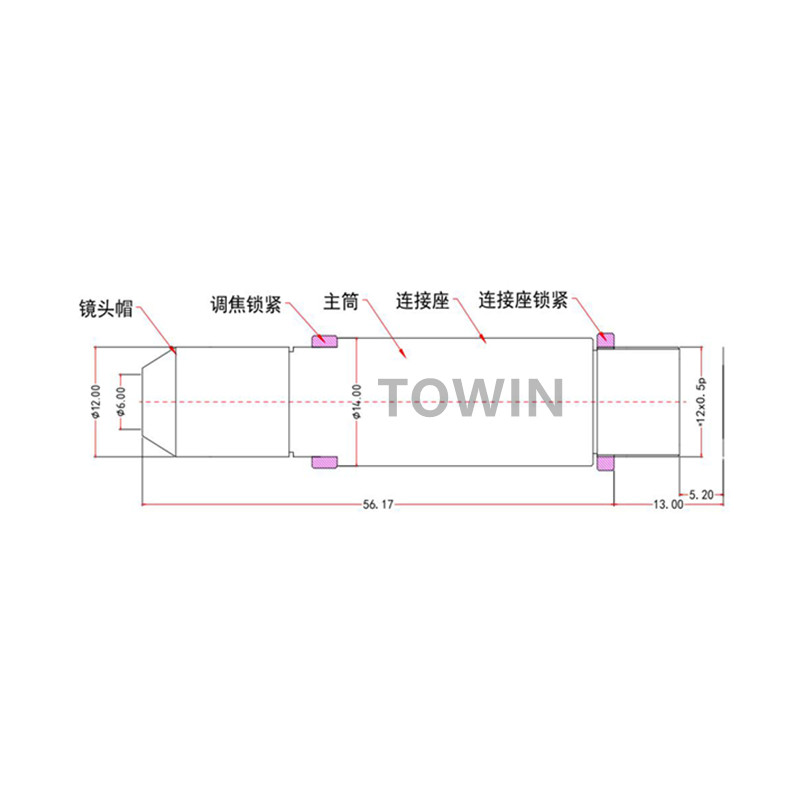

CCL1370PMPR 70mm pinhole M12 S-mount lens

Download Specs Sheet

Online contact

SENSOR	1/3″
E.F.L.	70mm
H. F.O.V.	4°
FNo.	12
Max Dist.	1%
IRIS	Fixed
MOUNT	M12x0.5
RESOLUTION	2MP
T.T.L.(mm)	69.17
FEATURE	Pinhole
MARK	HOT LENSES

筛选镜头

HOT LENSES(43)

产品 MOUNT

产品 SENSOR

产品 FEATURE

产品 IRIS

产品 H. F.O.V.

产品 H. F.O.V. 4°230°4°230°4°230°4°7.2°10°12°16°20°22.5°26°~6°28.5°30.5°34°36°40°43°44°46°~8.6°47°~11°49.5°52°-25°55°57°60°63°66°70°74°~27°75°80°83°86°92°95°99°101°103°105°109°111°114°~26°115°118°122°~23°124°127°132°138°143°180°190°205°230°

产品 E.F.L.

产品 E.F.L. 0.08mm70mm0.08mm70mm0.08mm70mm0.08mm0.8mm1.0mm1.1mm1.17mm1.38mm1.5mm1.55mm1.65mm1.8mm1.9mm2.1mm2.3mm2.5mm2.56mm2.7-13mm2.8-12mm2.9mm3.0mm3.1mm3.3mm3.5mm3.6mm3.7mm3.8-18mm4-12mm4.2mm4.4mm4.5mm4.9mm5mm5.2mm5.5mm6-15mm6mm6.5mm7.4mm7.5-16mm7.7mm8mm8.5mm9-50mm10mm12mm15-75mm15-30mm16mm22mm30mm45mm70mm

产品 RESOLUTION

产品 RESOLUTION VGA23.5VGA23.5VGA23.5VGAMP1MP1.3MP2MP3MP4MP5MP6MP8MP10MP12MP12.5MP14 MP16MP18 MP20MP23.5

产品 Max Dist.

产品 Max Dist. 0.02%169%0.02%169%0.02%169%0.02%0.04%0.2%0.3%0.4%0.75%0.9%1.15%1.4%1.5%2%2.8%3%3.78%4%6%6.9%8%9%11%12.9%14%18%19.1%23%25%27%29%32%35%37%43%49%53%59%64%68%72%75%79%81%87.5%90%94%98%100%104%113%117%138%169%

产品 FNo.

产品 FNo. 1.2121.2121.2121.21.31.41.51.61.822.12.22.32.42.52.62.833.23.544.24.55.681012

产品 T.T.L.(mm)

产品 T.T.L.(mm) 1.781211.781211.781211.785.67.19.8310.310.510.911.21mm1212.24131414.314.514.8415.1215.315.5915.9116.1716.616.85±0.417.0817.517.8218.7919.219.720.120.53±0.1520.721.521.721.922.0822.322.5722.9523.592425.229.1833.153758.963.769.178188.899.5121

CCL1370PMPR

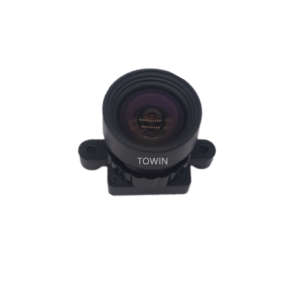

CCL14020MP
