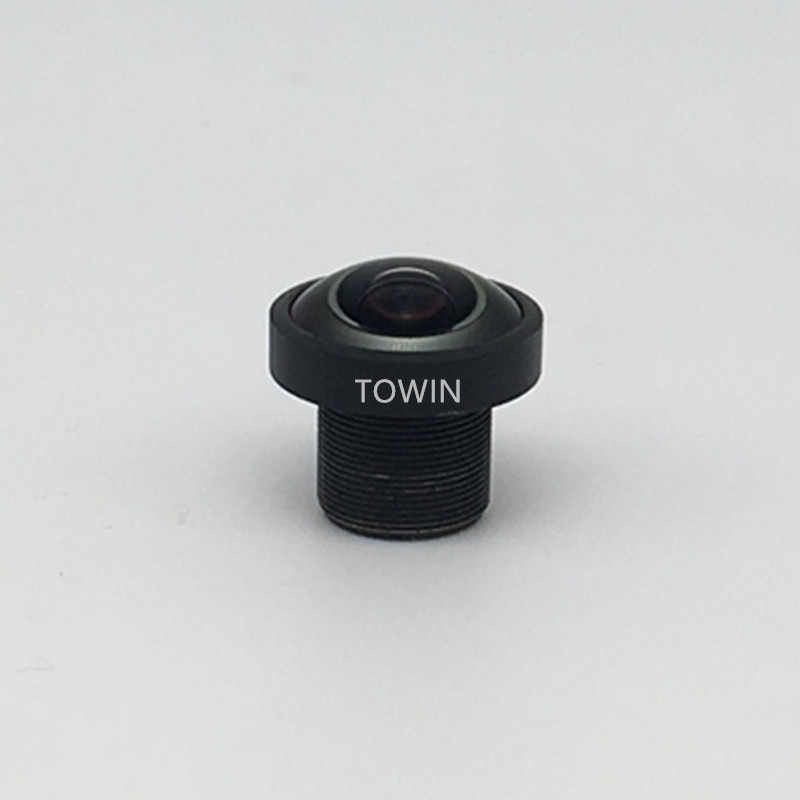

CCL23020MPF

千万像素 190度鱼眼板机镜头大成像圈Φ6mm

描述

S接口鱼眼镜头CCL23020MPF具有大成像圈Φ6mm和视场角190度。而且它高分辨率适用于千万像素以上的芯片传感器。

IMAGE FORMAT	Φ6.0mm
FOCAL LENGTH	2.0mm
F.O.V.@Φ6.0	190°
F.O.V.@Φ4.6	140°
RESOLUTION	10 MP
F-THETA DIS.	-4.9%
APERTURE	F2.5
MOUNT	M12x0.5
IRIS	Fixed
M.O.D.	0.1m
B.F.L.	4.35mm
CONSTRUCTION	7G+IR cut

Download Specs Sheet
